Naxilai Large Diameter Clear Plastic Tubes
Features:
clear acrylic tube large diameter is manufactured involving more labor.
Cast acrylic tubes are made from 2000mm or 3000mm long mould. Then adjust down to the exact inner and out diameters. After that, polishing clear perspex tubing to optical clarity.

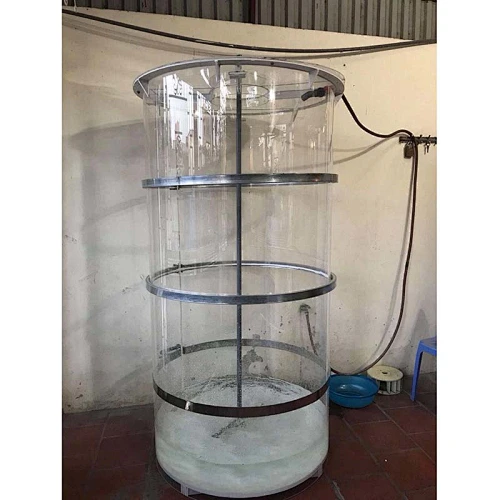

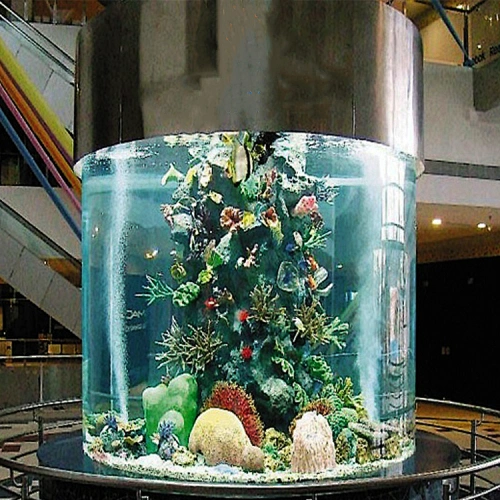

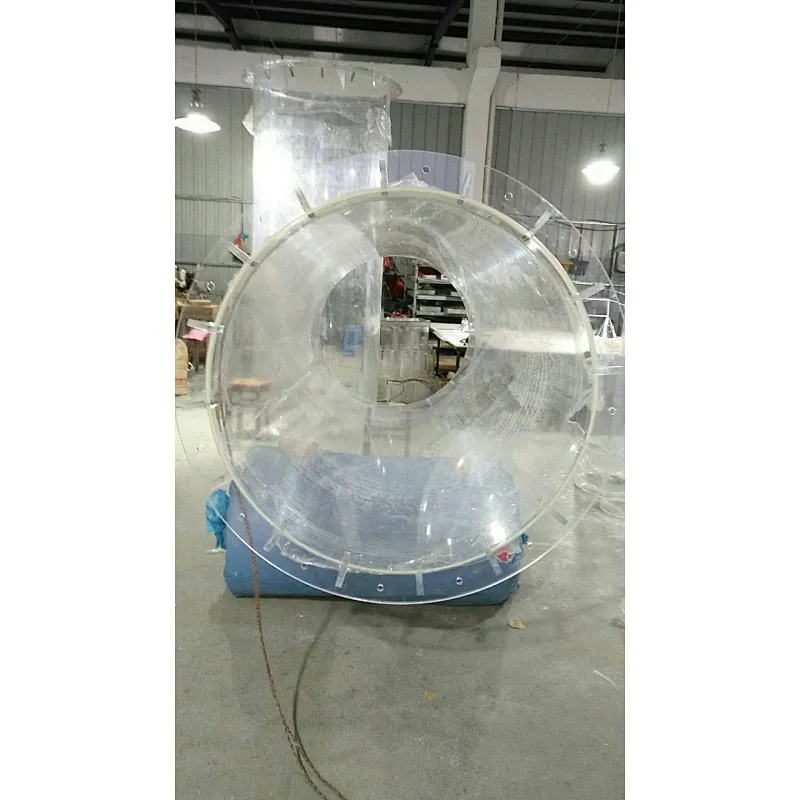

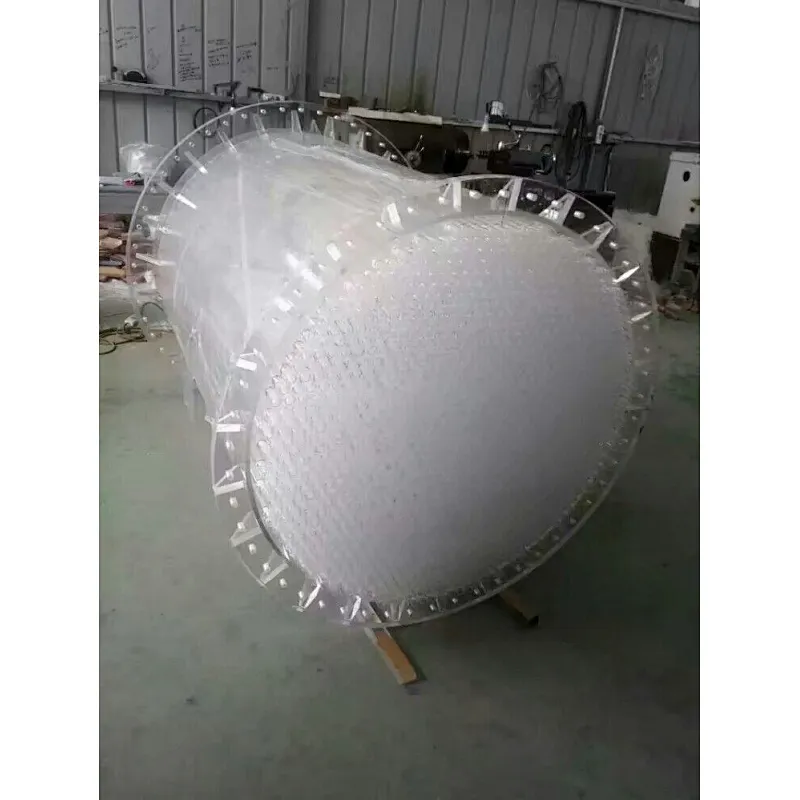

If you try to make pressure vessels and other equipment such as acrylic aquarium, fountain, acrylic hyperbaric oxygen chamber, vacuum chamber,pressurized chamber，acrylic stand, acrylic plinth, acrylic fish tank, scientific equiment, structurall support etc.. Cast pmma seamless tubing is the correct choice for u.

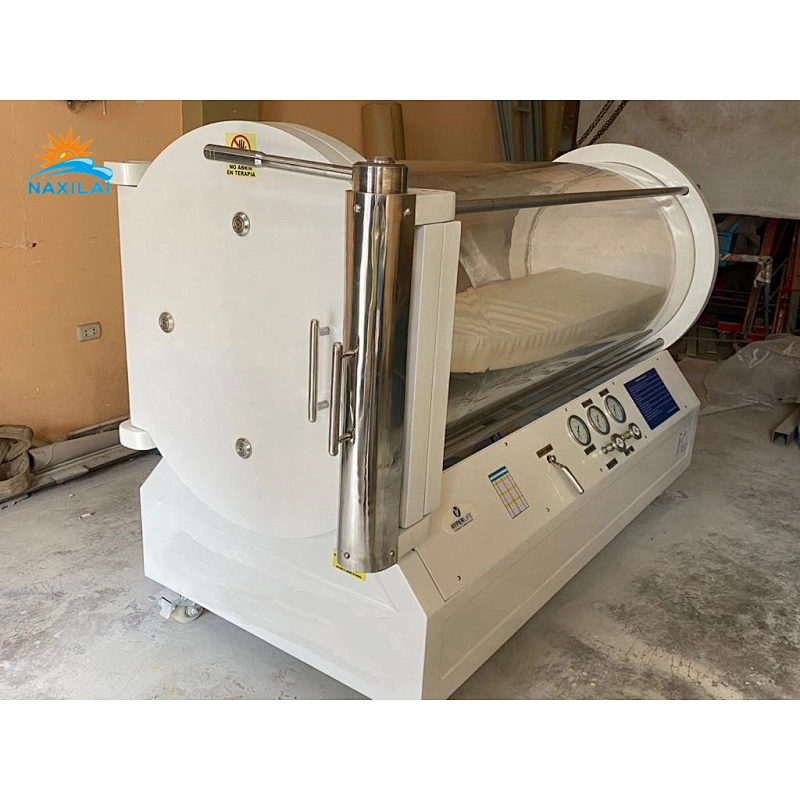

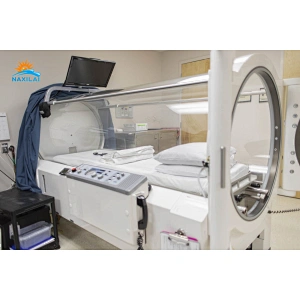

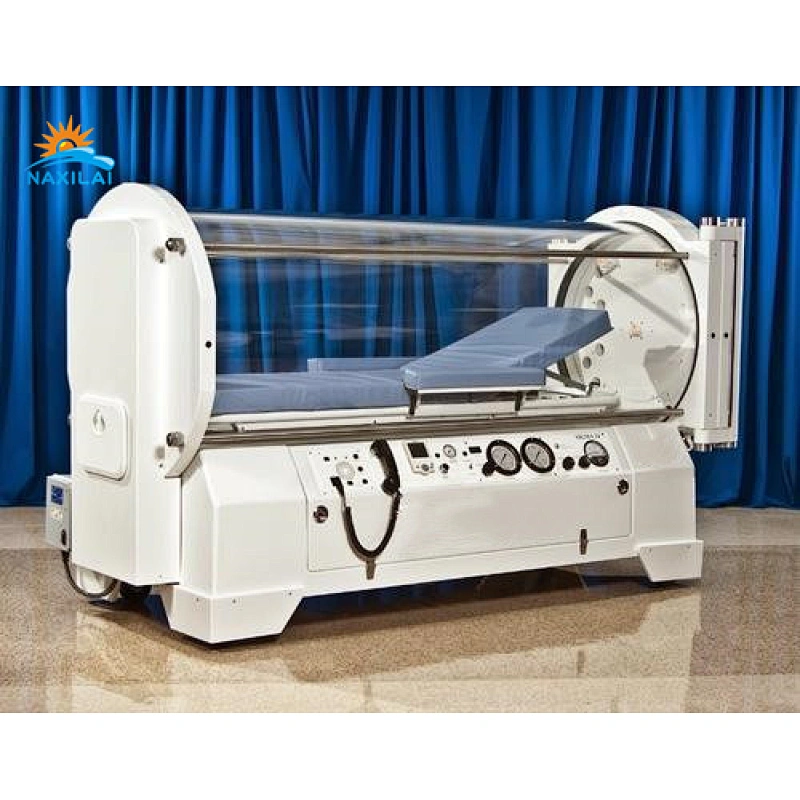

Favorite sizes acrylic tubes for hyperbaric chamber are as following:
OD.*THICKNESS*LENGTH |
800*22*2000mm |
800*25*990mm |
900*25*2000mm |
1000*25*2000mm |
1000*30*2000mm |
1200*30*2000mm |
We have other sizes for more choice:
cast acrylic tube in 2000mm long（wall thickness from 4mm to 110mm) | |||||||||||||
90 | 95 | 100 | 110 | 120 | 125 | 130 | 140 | 145 | 150 | 160 | 165 | 170 | 180 |
190 | 200 | 210 | 220 | 230 | 240 | 250 | 260 | 270 | 280 | 285 | 290 | 300 | 305 |
310 | 320 | 328 | 240 | 350 | 352 | 360 | 370 | 380 | 390 | 400 | 403 | 420 | 450 |
454 | 478 | 500 | 528 | 532 | 556 | 579 | 600 | 606 | 629 | 650 | 700 | 780 | 800 |
900 | 1000 | 1100 | |||||||||||
cast acrylic tube in 3000mm long（wall thickness from 4mm to 110mm) | |||||||||||||
200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 598 | 700 | 800 | 1000 | 1200 | 1500 |
Packing:

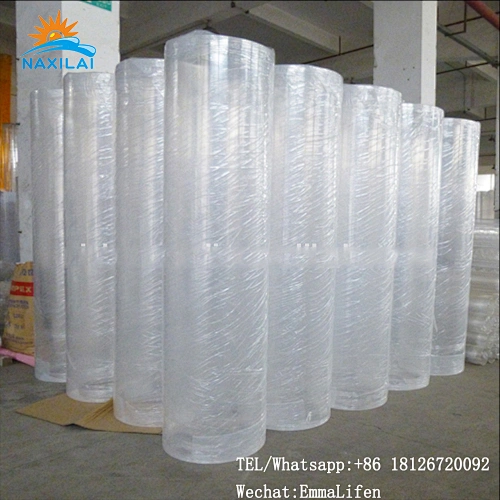

We adapt reinforced wooden box to pack acrylic tubes mostly which can provide all-round protection for your products during transportation. This shipping method can make sure all acrylic tubes safety and prevent them broken and deformation.
Manufacturing
Our Manufacturing process mainly includes laser cutting, cutting, cloth wheel polishing, diamond polishing, screw drilling, silk screen printing, cleanimg and fabricating.
FAQ:
Q: How can I get a sample?
A: Normally small size samples can be sent free of charge and customers only need to pay a little shipping charge or you can provide your DHL, FEDEX, TNT, UPS courier account number to us. As for bigger sizes, it depends.
Q: What is the delivery time?
A: Sample is normally 3 days. Mass production is normally 15days. Mass fabricated products is normally 30days.
Q: How can you guarantee quality of production is the same with sample sent to me before?
A: Our warehouse staff will keep one same sample marked your company name in our factory, production will based on warehouse sample. And we will send you pictures and video if production is finished.
Q: What is the payment term?
A: Normally 30% deposit and 70% balance paid before shipment.
Q: What is the paying ways available?
A: L/C, credit card, T/T, Paypal, Alipay etc.
Q: What is transportation way?
A: Express, by sea, by air, by sea, by express etc.
