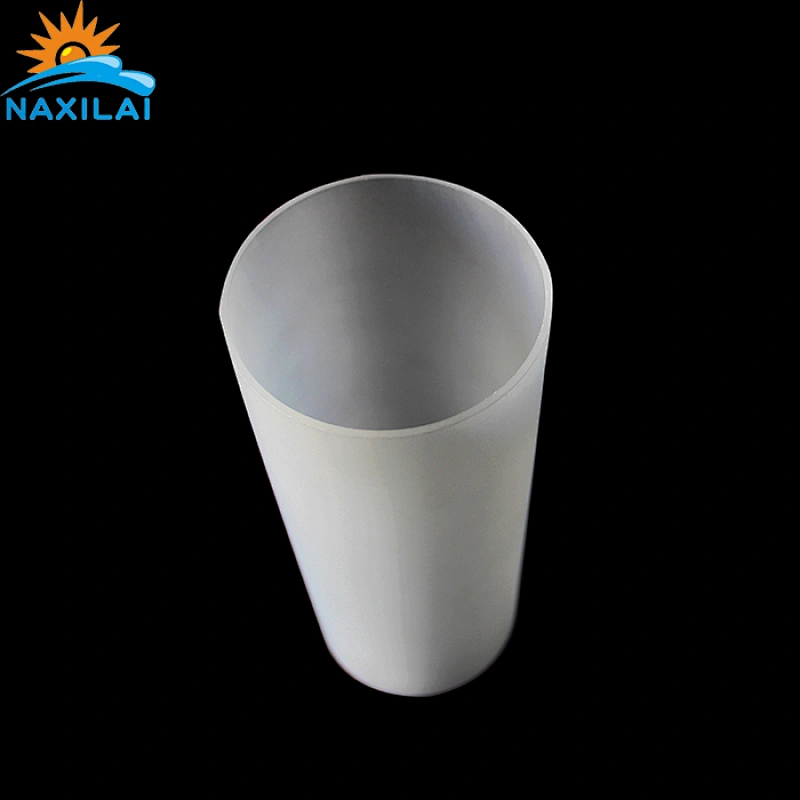

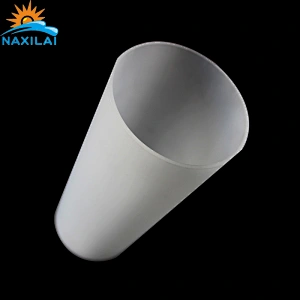

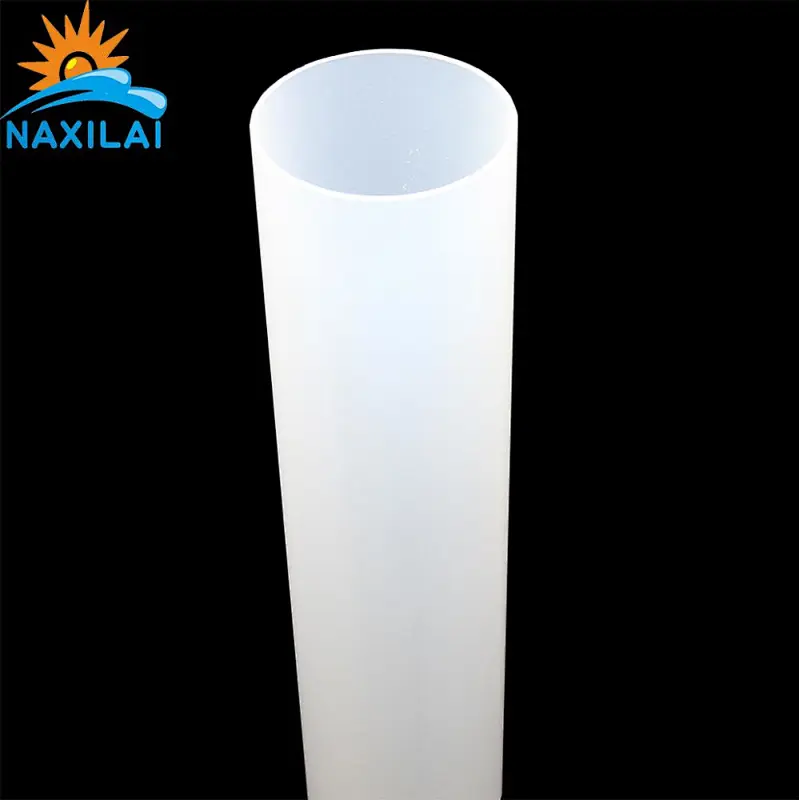

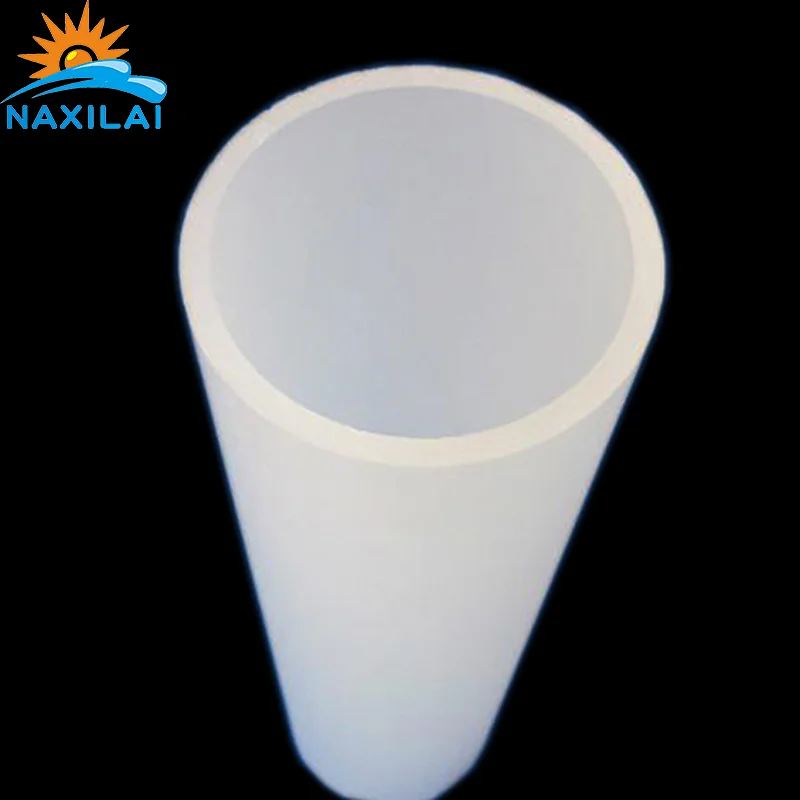

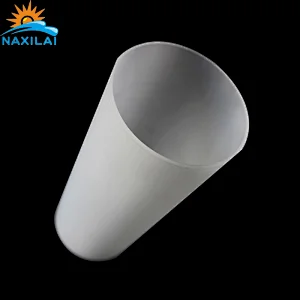

Naxilai Street Light Housing Diffusion Pipe for Lamp
The light diffusing plastic tube means that they are white acrylic tube or frosted acrylic tube or frosted acrylic round tube or frosted acrylic square tube or sandblasting frost tube. Clear acrylic tube and diffusion perspex tube can be used in lighting industry. We have many diameters of diffusion pmma pipe for lighting applications.Cast round acrylic tube sizes outer diameter from 90----1500mm. Standard length is 2000mm or 3000mm.We can do cut to size as customers'requirement.
| Technical data sheet of PMMA | |||
| item | test method | unit | PMMA |
| color | transparent | ||
| porportion | 1183 | g/cm3 | 1.2 |
| heat endurance(continuous) | ℃ | 70 | |
| heat endurance(short-term) | ℃ | 90 | |
| glass transition temperature | ℃ | 100 | |
| coefficient of linear thermal expansion(23--100℃ average value) | m/(m.k) | 70×10-6 | |
| combustibility(UL94) | 4589 | HB | |
| negative(suck in 23℃ water) | 62 | % | 0.3 |
| bending tensile stress/tensile stress of broken | 527 | MPa | 125 |
| tensilbe modulus of elasticity | 527 | MPa | 3300 |
| friction coefficient | 0.55 | ||
| luo's hardness | 2039-1 | - | 90 |
| resistance strength | 60243 | kv/mm | >40 |
| volume resistance | （60093） | Ω×cm | ≥1015 |
| surface resistance | （60093） | Ω | ≥1015 |
| available outer diameter sizes (in millimetre) | |||||||||||||
| extruded acrylic tube | |||||||||||||
| 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 12.5 | 13 | 14 | 15 | 16 | 16.5 |
| 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 26.5 | 28 | 30 | 32 |
| 33 | 34 | 35 | 36 | 37.5 | 38 | 40 | 42 | 45 | 48 | 50 | 51 | 52 | 54 |
| 55 | 56 | 57 | 58 | 60 | 62 | 63 | 64 | 65 | 70 | 71 | 72 | 73 | 75 |
| 76 | 77 | 80 | 82 | 85 | 87 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 125 |
| 130 | 135 | 140 | 145 | 150 | 155 | 160 | 165 | 170 | 180 | 190 | 200 | 210 | 220 |
| 250 | 300 | 350 | 360 | 400 | |||||||||
| extruded screw acrylic tube | |||||||||||||
| 9 | 12 | 16 | 19 | 22 | 25 | 28 | 32 | 35 | 38 | 51 | 76 | 90 | 120 |
| cast acrylic tube in 2000mm long（wall thickness from 4mm to 110mm) | |||||||||||||
| 90 | 95 | 100 | 110 | 120 | 125 | 130 | 140 | 145 | 150 | 160 | 165 | 170 | 180 |
| 190 | 200 | 210 | 220 | 230 | 240 | 250 | 260 | 270 | 280 | 285 | 290 | 300 | 305 |
| 310 | 320 | 328 | 240 | 350 | 352 | 360 | 370 | 380 | 390 | 400 | 403 | 420 | 450 |
| 454 | 478 | 500 | 528 | 532 | 556 | 579 | 600 | 606 | 629 | 650 | 700 | 780 | 800 |
| 900 | 1000 | 1100 | |||||||||||
| cast acrylic tube in 3000mm long（wall thickness from 4mm to 110mm) | |||||||||||||
| 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 598 | 700 | 800 | 1000 | 1200 | 1500 |
| extruded square acrylic tube | |||||||||||||
| 10X10 | 13X13 | 17X17 | 14X24 | 18X20 | 15X25 | 25X25 | 35X35 | 50X50 | 55X55 | 60X60 | 65X105 | ||
Packing:
We adapt reinforced wooden box to pack acrylic tubes mostly which can provide all-round protection for your products during transportation. This shipping method can make sure all acrylic tubes safety and prevent them broken and deformation.
About US

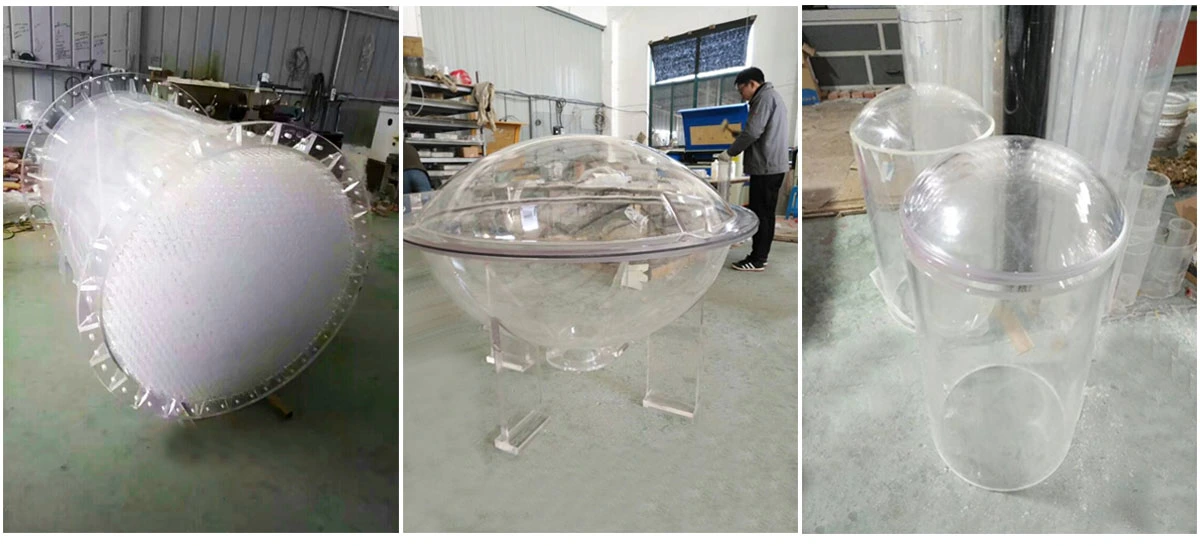

Naxilai has been in acrylic business for more than 15years. The acrylic tubes are made of 100% virgin Mitsubishi pmma which is non-yellow and long service life. We have complete modern equipments like laser cutting machine, engraving machine, cutting machine, circular grinding machine, lathe, extrusion lines, ovens, polishing machines, water tank etc. Therefore, we can build many complicated acrylic products like flange, cone, filter, reaction tank, acrylic hyperbaric oxygen chamber, algae cultivation tubing, acrylic aquarium etc. We also can provide OEM/ODM service. If you need to make acrylic fabrication, please contact with us.
Manufacturing
Our Manufacturing process mainly includes laser cutting, cutting, cloth wheel polishing, diamond polishing, screw drilling, silk screen printing, cleanimg and fabricating.
FAQ:
Q: How can I get a sample?
A: Normally small size samples can be sent free of charge and customers only need to pay a little shipping charge or you can provide your DHL, FEDEX, TNT, UPS courier account number to us. As for bigger sizes, it depends.
Q: What is the delivery time?
A: Sample is normally 3 days. Mass production is normally 15days. Mass fabricated products is normally 30days.
Q: How can you guarantee quality of production is the same with sample sent to me before?
A: Our warehouse staff will keep one same sample marked your company name in our factory, production will based on warehouse sample. And we will send you pictures and video if production is finished.
Q: What is the payment term?
A: Normally 30% deposit and 70% balance paid before shipment.
Q: What is the paying ways available?
A: L/C, credit card, T/T, Paypal, Alipay etc.
Q: What is transportation way?
A: Express, by sea, by air, by sea, by express etc.
