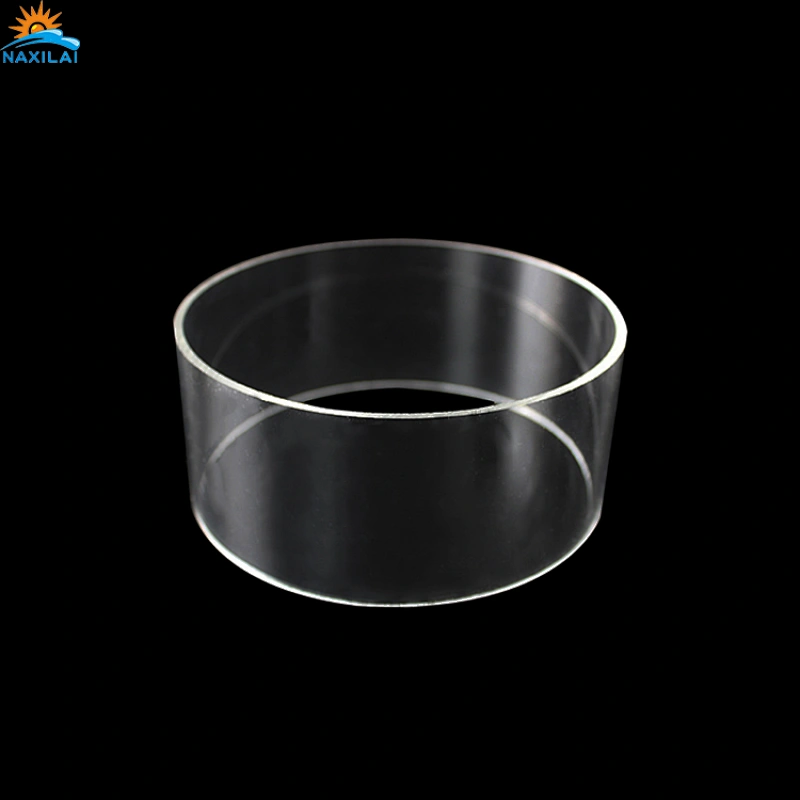

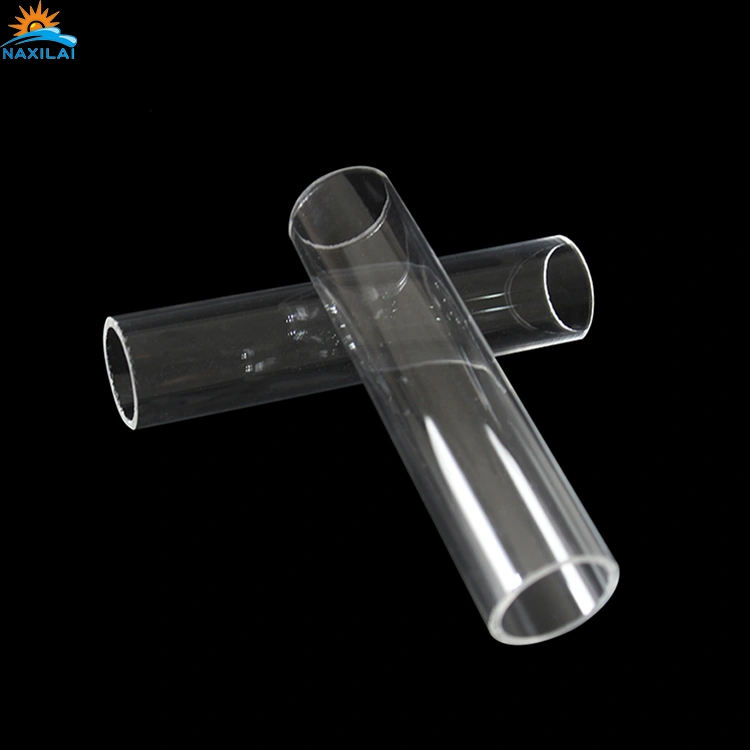

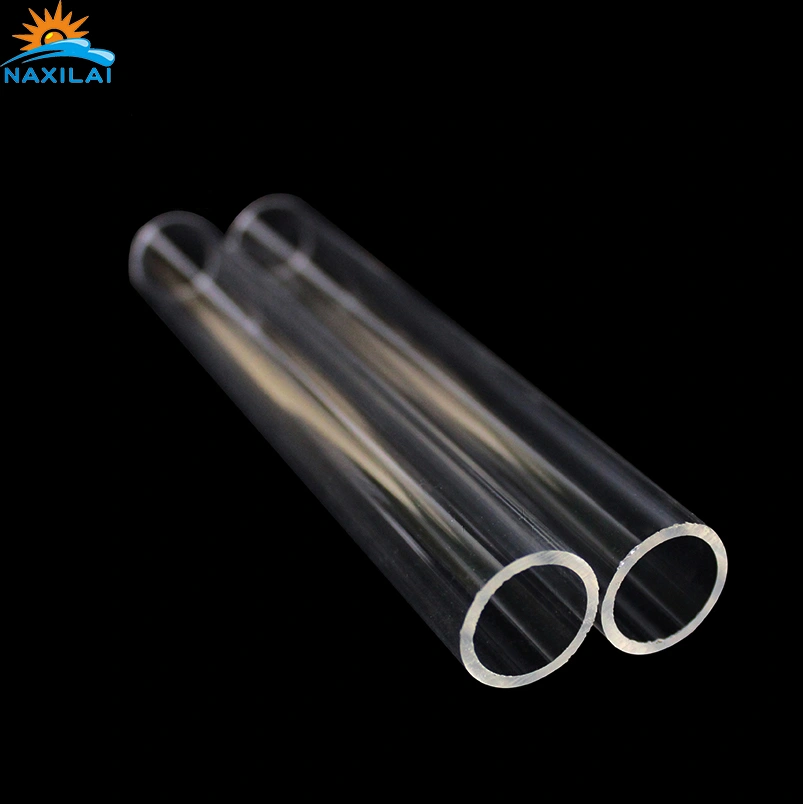

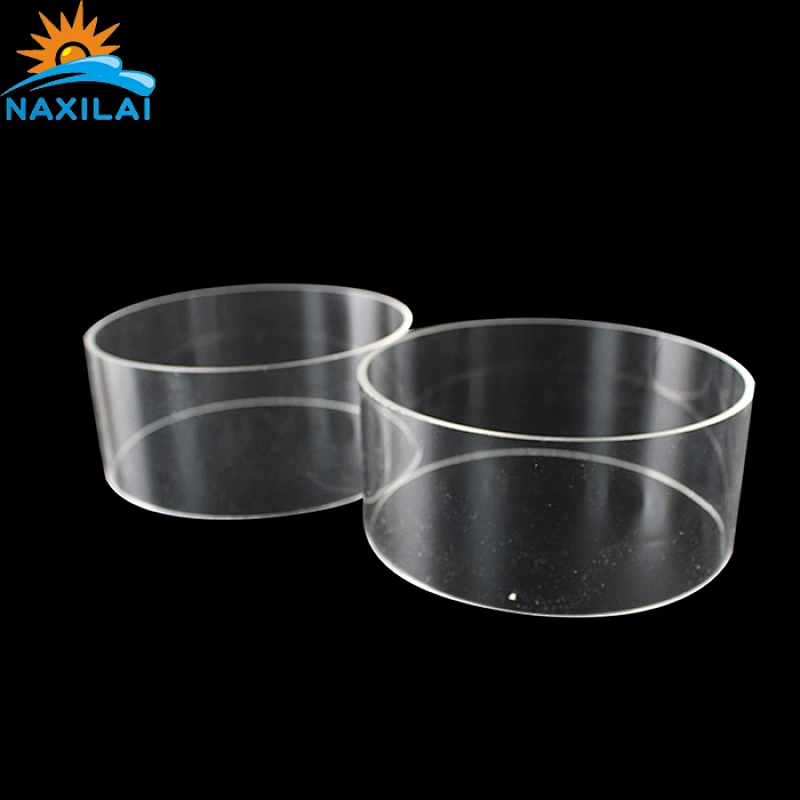

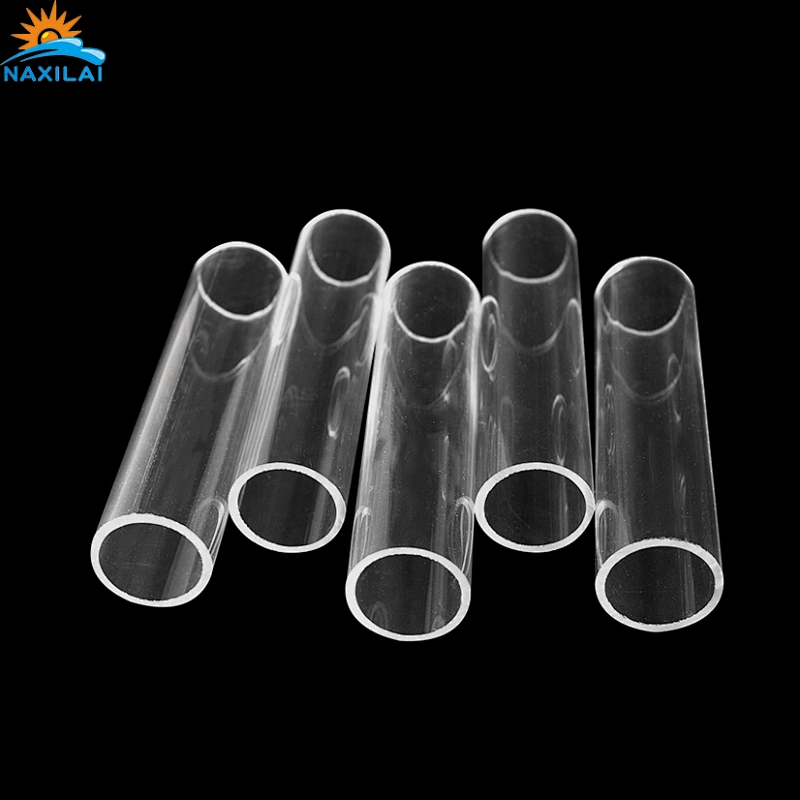

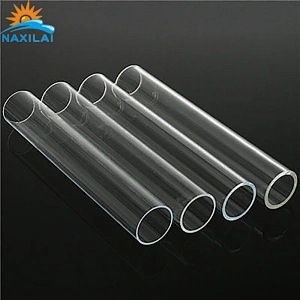

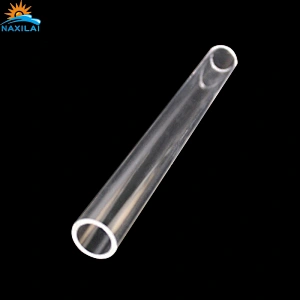

Transparent Perspex Tube
Production Features:
The acrylic clear transparent tube is made of plastic Polymethylmethacrylate(PMMA), with very shining surface, good transparency, 92% light transmittance, strong weather resistance, strong hardness and high temperature resistance. Heat endurance is from 70 to 90 degree C wear resistance, with stability and corrosion resistance. The light transmittance is the same as glass, but the density is only half of glass. In addition, it is not as fragile as glass. Even if it is broken, it will not be dangerous to hurt people.
Many processing ways:
Punching,cuting,thermoforming,drilling,polishing,chamfer,screw thread etc..
Extruded acrylic tube vs cast acrylic tube:
Cast acrylic tube is more expensive than extruded tubing because the way cast pipe is manufactured which involved more labor.Cast clear acrylic pipe is made by mould of 2meters or 3meters long.Then adjust down to the exact inner and out diameters.After that,polishing clear perspex tubing to optical clarity.If you try to make pressure vessels and other equipment.Cast pmma seamless tubing is the correct choice for u.
Applications prosthetic fabrication
Prosthetic fabrication, products displaying, acrylic wedding centerpiece, acrylic vase, acrylic container, acrylic tank, acrylic storage, acrylic display stand, acrylic fish tank, acrylic lamp, acrylic scrunchie holder, pet cage, candy dispensers, children toys, LED lighting, structurall support ,acrylic tube home depot, etc..
| available outer diameter sizes (in millimetre) | |||||||||||||
| extruded acrylic tube | |||||||||||||
| 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 12.5 | 13 | 14 | 15 | 16 | 16.5 |
| 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 26.5 | 28 | 30 | 32 |
| 33 | 34 | 35 | 36 | 37.5 | 38 | 40 | 42 | 45 | 48 | 50 | 51 | 52 | 54 |
| 55 | 56 | 57 | 58 | 60 | 62 | 63 | 64 | 65 | 70 | 71 | 72 | 73 | 75 |
| 76 | 77 | 80 | 82 | 85 | 87 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 125 |
| 130 | 135 | 140 | 145 | 150 | 155 | 160 | 165 | 170 | 180 | 190 | 200 | 210 | 220 |
| 250 | 300 | 350 | 360 | 400 | |||||||||
| extruded screw acrylic tube | |||||||||||||
| 9 | 12 | 16 | 19 | 22 | 25 | 28 | 32 | 35 | 38 | 51 | 76 | 90 | 120 |
| cast acrylic tube in 2000mm long（wall thickness from 4mm to 110mm) | |||||||||||||
| 90 | 95 | 100 | 110 | 120 | 125 | 130 | 140 | 145 | 150 | 160 | 165 | 170 | 180 |
| 190 | 200 | 210 | 220 | 230 | 240 | 250 | 260 | 270 | 280 | 285 | 290 | 300 | 305 |
| 310 | 320 | 328 | 240 | 350 | 352 | 360 | 370 | 380 | 390 | 400 | 403 | 420 | 450 |
| 454 | 478 | 500 | 528 | 532 | 556 | 579 | 600 | 606 | 629 | 650 | 700 | 780 | 800 |
| 900 | 1000 | 1100 | |||||||||||
| cast acrylic tube in 3000mm long（wall thickness from 4mm to 110mm) | |||||||||||||
| 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 598 | 700 | 800 | 1000 | 1200 | 1500 |
| extruded square acrylic tube | |||||||||||||
| 10X10 | 13X13 | 17X17 | 14X24 | 18X20 | 15X25 | 25X25 | 35X35 | 50X50 | 55X55 | 60X60 | 65X105 | ||
Packing:
We adapt reinforced wooden box to pack acrylic tubes mostly which can provide all-round protection for your products during transportation. This shipping method can make sure all acrylic tubes safety and prevent them broken and deformation.
About US
Naxilai has been in acrylic business for more than 15years. The acrylic tubes are made of 100% virgin Mitsubishi pmma which is non-yellow and long service life. We have complete modern equipments like laser cutting machine, engraving machine, cutting machine, circular grinding machine, lathe, extrusion lines, ovens, polishing machines, water tank etc. Therefore, we can build many complicated acrylic products like flange, cone, filter, reaction tank, acrylic hyperbaric oxygen chamber, algae cultivation tubing, acrylic aquarium etc. We also can provide OEM/ODM service. If you need to make acrylic fabrication, please contact with us.
Manufacturing
Our Manufacturing process mainly includes laser cutting, cutting, cloth wheel polishing, diamond polishing, screw drilling, silk screen printing, cleanimg and fabricating.
FAQ:
Q: How can I get a sample?
A: Normally small size samples can be sent free of charge and customers only need to pay a little shipping charge or you can provide your DHL, FEDEX, TNT, UPS courier account number to us. As for bigger sizes, it depends.
Q: What is the delivery time?
A: Sample is normally 3 days. Mass production is normally 15days. Mass fabricated products is normally 30days.
Q: How can you guarantee quality of production is the same with sample sent to me before?
A: Our warehouse staff will keep one same sample marked your company name in our factory, production will based on warehouse sample. And we will send you pictures and video if production is finished.
Q: What is the payment term?
A: Normally 30% deposit and 70% balance paid before shipment.
Q: What is the paying ways available?
A: L/C, credit card, T/T, Paypal, Alipay etc.
Q: What is transportation way?
A: Express, by sea, by air, by sea, by express etc.
